Coating Mass /Coating weights for tinplate
There are two types coating of mass: the Equally coated Mass(in
which both sides have the same mass of tin coating) and
the Differentially Coated Mass(in which one side is more heavily
coated than the other )

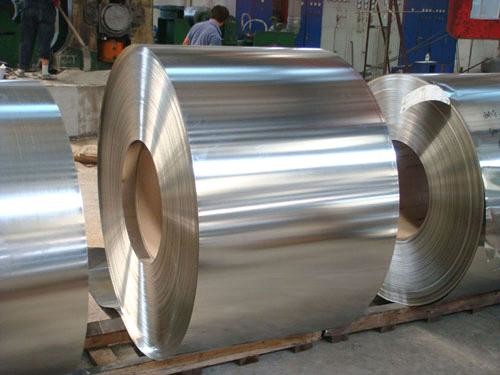

Product Name | Tinplate Coil |
Standard | ASTM AISI DIN JIS GB EN BS EN 10202, DIN EN 10203, GB/T2520, JIS
G3303, ASTM A623 |
Material | MR SPCC SPCD SPCH Q195L S08AL SPTE etc |
Temper | T1/T2/T2.5/T3/T4/T5/DR7/DR7.5/DR8/DR9/DR9M/DR10,etc |
Annealing | CA(Continuous annealing) and BA(Batch annealing) |
Tin Coating(g/m2) | 1.0/1.0,2.0/2.0,2.8/2.8, 5.6/5.6, 2.8/5.6,8.4/8.4, 11.2/11.2, etc |
Application | Widely used for metal packaging industry.
Such as making cans for food,
tea,oil,paints,chemicals,aerosol,gifts,printing. |
Thickness | 0.14-0.6mm (tolerance-/+0.01mm) |
Width | 600-1500mm (tolerance -/+3 mm) |
Length | coil, as customer's requirement |
Coil Weight | 3-10 Tons or as required |
Surface Finish | Stone, Bright, Silver |
Quality | Mill Test Certificate supplied with the shipment ,third party
inspection is acceptable |
Food and Beverage Cans:
- Grade Requirements: Tinplate used for food cans must have a thin,
uniform tin coating that provides excellent corrosion resistance.
The surface finish should be smooth to avoid any contamination of
the contents, and the material must be resistant to acids,
alkalines, and moisture.
- Material Properties: For deep drawing and stamping, food can
grades of tinplate are typically made from low-carbon steel, which
offers high formability. The material must also meet food safety
standards, ensuring that there are no harmful reactions between the
tinplate and the food inside the can.
- Typical Grades: Common grades used in food canning are T1 and T2
tinplate, which are characterized by high ductility and low carbon
content.
Tinplate is a highly versatile material, combining the strength of
steel with the corrosion resistance of tin. It is particularly
valued in the packaging industry, especially for food and
beverages, where its non-toxic, food-safe properties are essential.
The material’s formability, recyclability, and aesthetic appeal
also contribute to its widespread use across industries, from
household products to electronics.
