    BA EPT 2.8/2.8 T5/DR7 Electrolytic Tin Coated Plate Coils Used For Aerosol And Beverage Cans

    Ask Lasest Price
    Brand Name : DBM
    Model Number : BA T3
    Certification : ISO9001, SGS, BV
    Price : 700 USD/MT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 500MT/DAY
    Delivery Time : 45-50 DAYS
    • Product Details
    • Company Profile

    BA EPT 2.8/2.8 T5/DR7 Electrolytic Tin Coated Plate Coils Used For Aerosol And Beverage Cans

    BA EPT 2.8/2.8 T5/DR7 Electrolytic Tin Coated Plate Coils Used For Aerosol And Beverage Cans


    1. Introduction

    • What is tinplate?

    • Tinned steel sheet referred to as tinplate, commonly known as tinplate, is a product made of tinning on a thin mild steel plate. The tin plate produced by the hot dip process is called the hot dip tin plate, and the tin plate produced by the electroplating process is called the electroplated tin plate.

    • Because about 98~99.8% of the weight of the tin plate is steel, it is a coated steel variety that belongs to metallurgical products.


    We are professional tinplate sheet coil manufacturer, located in Shandong province. We produce a line of tinplate sheet that is compliant with GB/T 2520-2000, JIS G3303-2002 and DIN EN 10203-1991 standards. Currently, our tinplate is extensively used for packaging food, beverages, paint, oil, aerosols, and other everyday items. It is also used for bottle caps, auto parts, and batteries.


    2. Tinplate characteristics

    Advantages of Food Cans

    Hygienic: Provide excellent and non-toxic barrier properties to protect food products from

    impurities, bacteria, moisture, light, and odours.

    Safe: Low weight and high strength make food cans easy to ship and store .

    Eco-friendly: Offer 100% recyclability; and significant cost benefits compared with aluminum.


    Application Records:

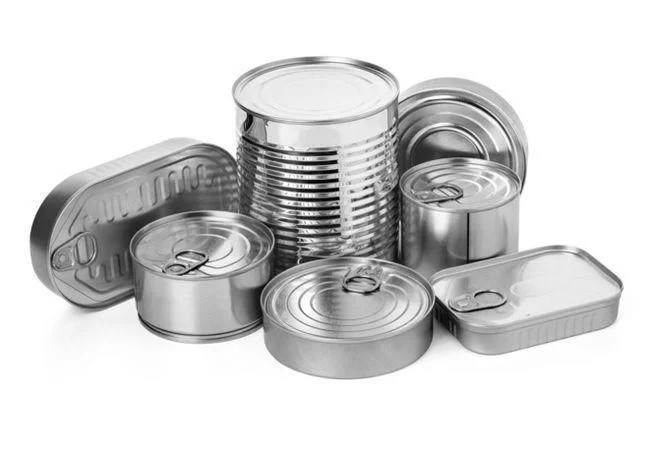

    1. Food and Beverage Cans:

    - Grade Requirements: Tinplate used for food cans must have a thin, uniform tin coating that provides excellent corrosion resistance. The surface finish should be smooth to avoid any contamination of the contents, and the material must be resistant to acids, alkalines, and moisture.

    - Material Properties: For deep drawing and stamping, food can grades of tinplate are typically made from low-carbon steel, which offers high formability. The material must also meet food safety standards, ensuring that there are no harmful reactions between the tinplate and the food inside the can.

    - Typical Grades: Common grades used in food canning are T1 and T2 tinplate, which are characterized by high ductility and low carbon content.


    2. Aerosol and Beverage Cans:

    - Grade Requirements: Tinplate used for beverage and aerosol cans must have high strength and be able to withstand internal pressure without deforming. It must also be resistant to corrosion and rust in environments containing liquids and gases.

    - Material Properties: This grade of tinplate must possess excellent formability for deep drawing processes to create the cylindrical shape of cans. The tin coating must be uniform and sufficiently thick to provide a barrier to corrosion.

    - Typical Grades: Grades such as DR8 (Deep Drawing) or DR9 are commonly used in beverage and aerosol cans. These grades provide high formability and strength.


    3. Packaging for Non-Food Products:

    - Grade Requirements: For packaging non-food products, such as paint cans or pet food cans, tinplate must have good resistance to chemicals and moisture. It also needs to offer adequate strength to hold the contents securely.

    - Material Properties: These tinplates may be coated with additional layers, such as lacquers or varnishes, to provide enhanced protection. The coating needs to be durable enough to prevent damage during transportation or storage.

    - Typical Grades: For non-food packaging, grades such as T3, T4, or T5 may be used, with varying levels of tensile strength and formability depending on the application.


    4. Automotive Parts and Components:

    - Grade Requirements: Automotive applications require tinplate that can withstand harsh environments and high levels of stress and corrosion. The tin coating must provide long-lasting protection against rust, especially in parts exposed to the weather and undercarriage.

    - Material Properties: The tinplate used in automotive parts must have high tensile strength and impact resistance. It must also be highly formable to allow for the creation of complex shapes and designs.

    - Typical Grades: Automotive applications may use higher strength grades such as SPCC (cold-rolled steel) with a heavier tin coating to improve durability and resistance.


    5. Decorative Applications:

    - Grade Requirements: For decorative products like signs and gift tins, tinplate must have a smooth, shiny surface that is suitable for printing or embossing. The material must also be resistant to scratches and dents to maintain its aesthetic appearance over time.

    - Material Properties: These products often require a more decorative finish, with a thinner tin coating that provides aesthetic appeal without the need for heavy-duty protection.

    - Typical Grades: DT1 (decorative tinplate) is often used for these applications, as it offers excellent surface quality and printability.


    3. Mechanical Properties of DR Tin Mill Products


    GB/T2520, JIS G3303

    EN10202

    TARGET VALUE

    TOLERANCE RANGE

    YIELD STREGNTH/MPA

    TENSILE STRENGTH/MPA

    T-1

    TS230

    49

    49±3

    230±50

    325±50

    T-2

    TS245

    53

    53±3

    245±50

    340±50

    T-2.5

    TS260

    55

    55±3

    260±50

    360±50

    T-3

    TS275

    57

    57±3

    275±50

    375±50

    T-3.5


    59

    59±3

    290±50

    390±50

    T-4

    TH415

    61

    61±3

    415±50

    435±50

    T-5

    TH435

    65

    65±3

    435±50

    460±50

    DR-7M

    TH520

    71

    71±3

    520±50

    540±50

    DR-8

    TS550/TH550

    73

    73±3

    550±50

    570±50

    DR-8M

    TH580

    73

    73±3

    580±50

    590±50

    DR-9

    TH620

    76

    76±3

    620±50

    625±50

    DR-9M


    77

    77±3

    660±50


    DR-10


    80

    80±3

    690±50


    The hardness is the average value of 2 samples, allowing 1 of them to exceed the specified allowable range by 1 unit.

    a The yield strength is a reference value determined as required.

    b Yield strength is the average value of the two samples. The sample is P5 in GB/T 228, and the direction of the sample is transverse.

    c Due to the thickness thinning effect, the elongation is too low and the yield strength cannot be measured. In this case, the yield strength is replaced by the tensile strength.

    d For the tensile test, the width of the parallel part of the sample is (12.5±1) mm, and the standard distance L0=50mm. Before the test. The sample should be artificially aged for 20min at 200℃.


    Thickness

    Tolerance

    Negative Tolerance

    Tolerance

    Positive tolerance

    0.18~0.55 SR

    +1%~—3%

    +2%~—2%

    +0%~+3%

    0.15~0.34 DR

    +1%~—3%

    +2%~—2%

    +0%~+3%

    Remarks

    The internal control is set at-0.002mm of the thickness of the contract order. The measurement value of the midpoint in the width direction of the strip shall prevail.

    The internal control sets the thickness of the contract order thickness. The measurement value of the midpoint in the width direction of the strip shall prevail.

    The internal control is to set the thickness of the contract order at +0.003mm, and the measured value at the midpoint of the strip width direction shall prevail.

    1. The thickness of S1, S2, S3 surface and M surface shall be measured by the flat thickness meter. (The matt surface will be higher than the actual measurement due to surface roughness.)
