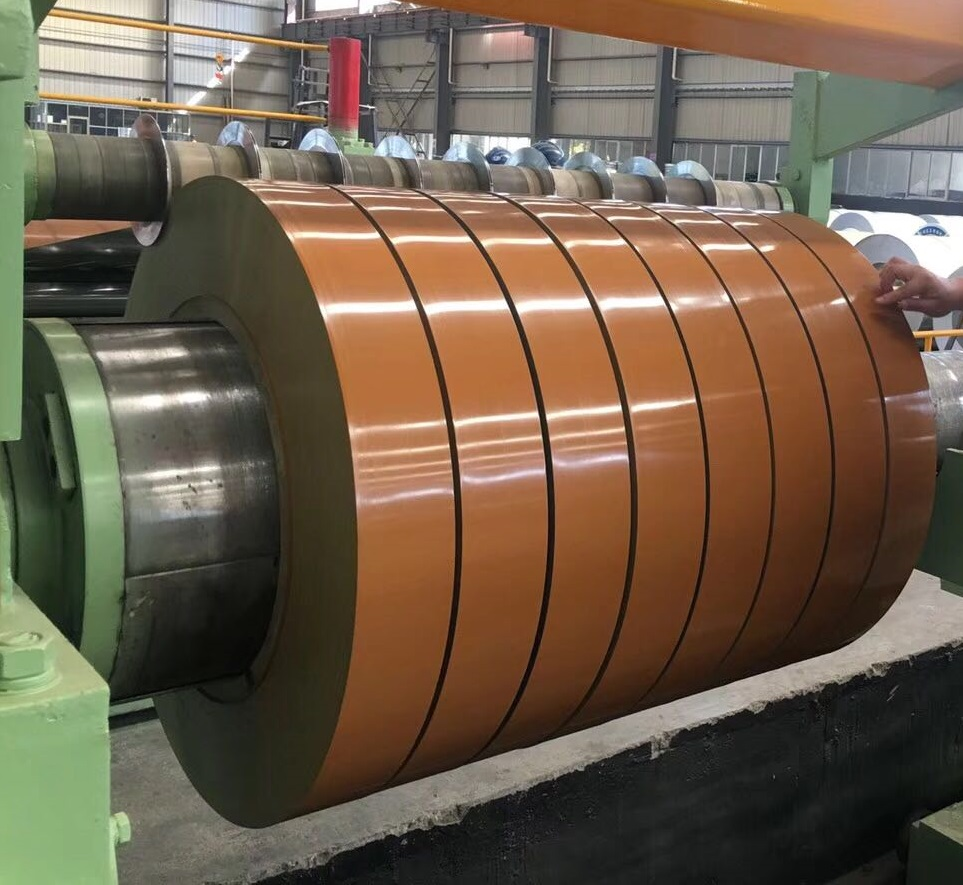

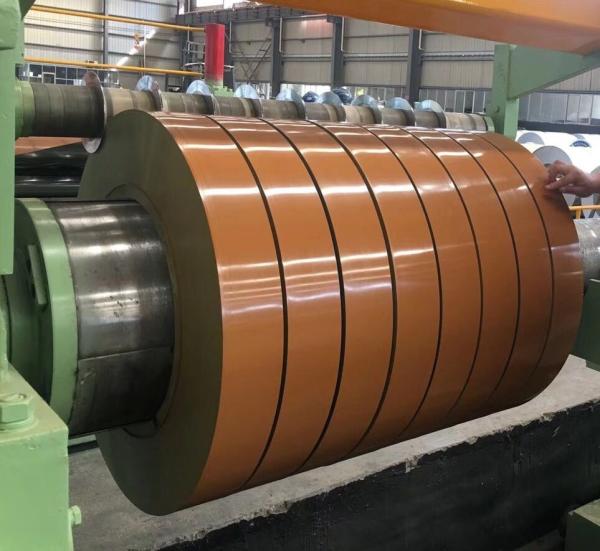

    PVC Film PPGL RAL2004 A120 25/8μm Beckers Pre-Painted Galvalume Steel Strips Colour Coated Slit Coils

    Ask Lasest Price
    Price : 850 USD/MT
    Payment Terms : L/C, T/T
    Supply Ability : 500MT/DAY
    Delivery Time : 30-40 DAYS
    • Product Details
    • Company Profile

    PVC Film PPGL RAL2004 A120 25/8μm Beckers Pre-Painted Galvalume Steel Strips Colour Coated Slit Coils

    Colour coated coil is a product made from hot-dip galvanised sheet, hot-dip aluminium zinc plated sheet, electro galvanised sheet, etc., which is pre-treated (chemical degreasing and chemical conversion treatment) and then coated with one or several layers of organic paint and subsequently baked and cured. Because of the coating of different colours of organic paint coloured steel coil and so named, referred to as colour coated coil.

    The use of hot-dip galvanised steel strip as the substrate of the colour coated steel strip in addition to the zinc layer protection, the zinc layer on the organic coating plays a role in covering and protecting the steel strip to prevent rust, the service life of the steel strip is longer than the galvanised strip, about 1.5 times.

    Colour Coated Coil Usage

    Colour coated coil has light weight, beautiful and good anti-corrosion properties, and can be directly processed, the colour is generally divided into grey and white, sea blue, brick red, mainly used in advertising, construction, home appliance industry, electrical appliances industry, furniture industry and transport industry.

    The coatings used for colour coated rolls are selected according to the use of different environments with suitable resins, such as polyester silicone modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride and so on. Users can choose according to the use.

    Coating Structures

    Type of coating structure

    • 2/1: Coat upper surface twice, lower surface once, bake twice.

    • 2/1M: Coat upper and lower surfaces twice, bake once.

    • 2/2: Top and bottom surfaces are coated twice each and baked twice.

    Usage of different coating structures:

    • 2/1: The corrosion resistance and scratch resistance of single layer back coating is poor, but it has good adhesion, mainly used for sandwich panels. It is mainly used for sandwich panels;

    • 2/1M: backcoat with good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer compression moulding panels.

    • 2/1M: good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer pressboards and sandwich panels.

    • 2/2: double-layer backing paint with good corrosion resistance, scratch resistance and processability, mostly used for single-layer pressboards, but with good adhesion.

    Most of them are used for single-layer moulding board, but its adhesion is not good, and it is not suitable for sandwich board.

    Colour Coated Coil Coating Types

    1. Polyester

    Good adhesion, rich colours, wide range in formability and outdoor durability, medium chemical resistance, low cost.

    1. Silicon Modified Polyester

    Silicone Modified Polyester (SMP), good film hardness, abrasion and heat resistance, as well as good exterior durability and resistance to chalking, gloss retention, general flexibility, medium cost.

    1. High Durability Polyester

    (HDP), excellent colour retention and UV resistance, excellent exterior durability and chalking resistance, good film adhesion, rich colour, excellent cost performance.

    1. Polyvinylidene fluoride

    (PVDF), excellent colour retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited colours, high cost.

    Index

    Pre-Painted Galvanized/ Galvalume / Aluminum Sheets & Coils

    Thickness

    Base Metal : GI: 0.20-1.70mm; GL: 0.20-1.50mm

    Base Metal: Aluminum 0.30-3.0mm

    Width

    600~1500mm

    Zinc Coating

    Z40~Z275 g/㎡

    AZ30~AZ200 g/㎡

    Paint Structure

    2/1, 2/2, 3/2, 3/3

    Paint Coating

    Top side: 15μm~55μm

    Back side: 5μm~30μm

    Paint System

    RMP, PE, SMP, HDP, PVDF

    Paint Brand

    PPG

    Beckers

    AkzoNobel

    Valspar (Sherwin-Williams)

    Chinese local brands

    Paint surface

    Gloss RAL color system

    Textured/Matt/Wrinkle Surface

    Printch Pattern Colors-Wood, Brick, Stone grains.

    Coil weight

    2 ~ 10 tons

    Packing

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons/color/size

    Index

    Strips & Slitting Steel Coils

    Available Products

    Galvanized, Galvalume, Aluzinc, Pre-Painted Steel Coils

    Thickness

    0.13-2.0mm

    Width

    20~1250mm

    Steel Grade

    DX51D/52D/53D/

    S250GD/280GD/350GD/550GD

    ASTM A792M, CS-B, SS255-SS550

    JIS G3302-SGCC, SGCH (Full hard-G550)

    Coil I.D.

    508 / 610 mm

    Coil weight

    1.5tons ~ 10 tons

    Packaging

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons

    Loading port

    Tianjin / Qingdao / Rizhao port

    Pre-Painted Steel / Aluminum Coating Structure


    Color coated steel paint coating varieties

    Functional classification of color coated steel sheet / Pre-Painted Steel & Aluminum



    DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

    Reasons for choosing Decho Building Materials new material:

    1. Provide extremely rich colour choices

    2. The paint surface is long-lasting and bright

    3. Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.

    4. with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building

    5. DECHO BUILDING MATERIALS for the manufacturer direct sales

    6. The colour is customized by customers;

    7. Thickness and width have a variety of options;

    8. We provide whole rolls and cut boards for sale;

    Welcome to enquire.
