    Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570

    Ask Lasest Price
    Brand Name : DECHO
    Model Number : Roofing Sheet Z80
    Certification : MILL TEST CERTIFICATE
    Price : USD 650~850
    Payment Terms : L/C, T/T
    Supply Ability : 800 tons/day
    Delivery Time : 30~45days
    MOQ : 16 tons
    • Product Details
    • Company Profile

    Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570

    1. Description

    What is Aluzinc Steel Coil?


    Aluzinc steel coil, also known as aluminium-zinc coated steel, is a type of steel product that features a coating made from an aluminium-zinc alloy. This coating typically consists of 55% aluminium, 43.4% zinc, and 1.6% silicon. The combination of these metals in the coating provides the steel with enhanced properties, making it suitable for various industrial and construction applications.


    Aluzinc steel coil is a premium coated steel product that offers significant advantages over traditional galvanized steel. Its superior corrosion resistance, excellent heat reflectivity, enhanced durability, and aesthetic appeal make it a preferred choice for a wide range of applications, including construction, roofing, siding, and industrial uses. The combination of aluminium and zinc in the coating ensures long-lasting performance, making Aluzinc steel coils a valuable material for demanding environments.


    2. Aluminum-Zinc Alloy Coated Steel (Aluzinc or Galvalume)

    - Description: Coated with an alloy of aluminum and zinc, typically 55% aluminum, 43.4% zinc, and 1.6% silicon.

    - Characteristics:

    - Corrosion Resistance: Superior, often three times more than galvanized steel.

    - Durability: High, with a lifespan that can exceed 50 years.

    - Reflectivity: High thermal reflectivity, making it energy-efficient.

    - Cost: Higher than galvanized steel, but offers better performance.

    - Applications: Ideal for harsh environments, including industrial and coastal areas.

    - Pros:

    - Excellent corrosion resistance.

    - Long lifespan and low maintenance.

    - Cons:

    - Higher initial cost.

    - More limited availability.


    3. Product advantages

    1. Superior Corrosion Resistance: The aluminium content in the coating provides enhanced corrosion resistance, especially in harsh environments.

    2. Heat Resistance: Better performance in high-temperature conditions due to the aluminium component.

    3. Longer Service Life: The combined protective properties of aluminium and zinc result in a longer lifespan compared to regular galvanized steel.

    4. Enhanced Reflectivity: The aluminium-zinc coating provides excellent reflectivity, making it suitable for roofing and siding applications where heat reflection is beneficial.


    4. Types of steel tiles

    1. Corrugated Steel Tiles

    - Description: These are traditional roofing sheets with a wavy pattern, offering good water drainage and aesthetic appeal.

    - Applications: Used for industrial, commercial, and residential roofing.

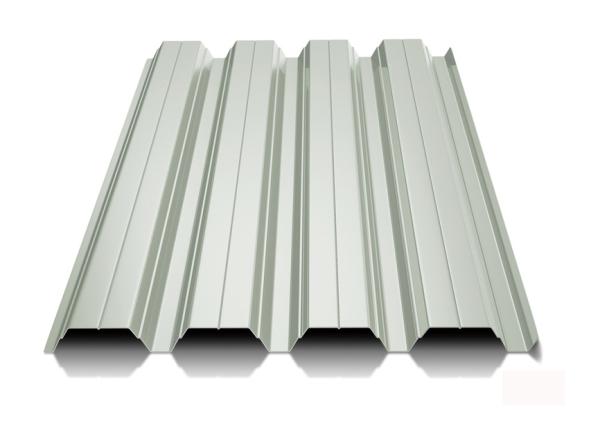

    2. Trapezoidal Steel Tiles

    - Description: Featuring a trapezoidal shape, these tiles provide excellent strength and durability.

    - Applications: Ideal for industrial buildings, warehouses, and large commercial structures.


    3. Tile-Effect Steel Tiles

    - Description: Designed to mimic the appearance of traditional clay or concrete tiles while providing the benefits of steel.

    - Applications: Popular in residential buildings and commercial buildings for aesthetic purposes.


    4. Standing Seam Steel Tiles

    - Description: These tiles have a raised seam running vertically up the roof, providing a sleek, modern look and superior weather resistance.

    - Applications: Used in contemporary residential buildings and high-end commercial projects.


    5. Sandwich Panel Steel Tiles

    - Description: Composed of a core insulating layer sandwiched between two steel sheets, offering excellent thermal and acoustic insulation.

    - Applications: Used in cold storage, warehouses, and buildings requiring temperature control.


    Category

    Details

    Thickness Range0.14 mm - 2.00 mm
    Width Range600 mm - 1500 mm
    Coil WeightUp to 25 tons
    Coil Inner Diameter508 mm / 610 mm
    Coating Composition55% Aluminum, 43.4% Zinc, 1.6% Silicon
    Coating WeightAZ50 - AZ200 (50 g/m² - 200 g/m²)
    Surface FinishRegular Spangle, Mini Spangle, Zero Spangle
    Surface TreatmentChromated, Non-Chromated, Oiled, Dry, Anti-fingerprint
    Mechanical Properties
    - Yield Strength300 - 550 MPa
    - Tensile Strength300 - 600 MPa
    - Elongation10% - 30% (depending on grade)
    SpangleRegular, Minimised, Zero
    Coil LengthCustom lengths based on customer requirements
    Standard ComplianceASTM A792, JIS G3321, EN 10346
    ApplicationsRoofing, Siding, HVAC, Appliances, Automotive, Agricultural Equipment, Industrial Components
    Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570

    Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570Aluzinc Standing Seam Steel Tiles Galvalume Corrugated Metal Roofing Sheets Structural Grade G550 / SGC570


    Index

    Regular spangle

    Zero spangle

    Galvanized Steel Coil/Sheets

    Galvanized Steel Coil/Sheets

    Thickness

    0.13-2.50mm

    0.20-2.0mm

    Width

    600~1500mm

    600~1500mm

    Zinc Coating

    Z30~Z400 g/㎡

    Z30~Z275 g/㎡

    Surface Treatment

    Passivated / Chromated 6+,3+, Free;

    Skin passed, Chromated 6+, 3+, Free

    Oiled

    Oiled, AFP (anti-finger print)

    Steel Grade

    DX51D/52D/53D/

    DX51D/52D/53D/

    S250GD/280GD/350GD/550GD

    S250GD/280GD/350GD/550GD

    ASTM A653M, SS255-SS550

    ASTM A653M, SS255-SS550

    JIS G3302-SGCC, SGCH (Full hard-G550)

    JIS G3302-SGCC, SGCH (Full hard-G550)

    Coil I.D.

    508 / 610 mm

    508 / 610 mm

    Coil weight

    2 ~ 20 tons

    2 ~ 20 tons

    Packaging

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons

    16 tons

    Loading port

    Tianjin / Qingdao / Rizhao port



    Usage

    Purlins, light steel frame, ventilation duct, downpipe, round pipe, square pipe, roof panel, corrugated sheets.

    Coated steel coil production, household appliances ( pre-coated metal PCM)

    Roof panel, corrugated sheets



    Application

    Steel Grade

    Standard

    Function & Characteristics

    Stamping Steel China Steel Grade

    DX51D+Z, DX51D DX52D+Z, DX52D DX53D+Z, DX53D DX54D+Z, DX54D

    GB/T 2518

    Including materials for general use, mechanical biting(LFQ Lock Forming quality), deep drawing, and ultra deep drawing. The coating and welding performance of alloying hot-dip galvanizing are superior.

    Structural Steel

    S250GD+Z, S250GD

    GB/T 2518

    Structural steel is generally used for important purposes such as load-bearing, and is often used in steel structure projects, with good corrosion resistance and processing performance

    S280GD+Z, S280GD

    S350GD+Z, S350GD

    S450GD+Z, S450GD

    S500GD+Z, S500GD

    S550GD+Z, S550GD
