T3 Temper ETP Tin Coated Electrolytic Tinplate Coil The Top Solution For Food And Beverage Packaging JIS G3303 EN10203

1. Introduction

Tin mill products encompass several key varieties: electrolytic tinplate, electrolytic chromium coated steel (known as tin free steel or TFS), and Black Plate. Tinplate consists of a thin steel sheet coated with tin, imparting a glossy metallic finish and enhancing properties like corrosion resistance and paintability. TFS, on the other hand, is steel plated with a thin layer of chromium and chromium oxide, delivering similar aesthetic appeal and robust qualities in terms of protection from corrosion and suitability for painting.

Modern tinplate is typically crafted from cold-rolled, low carbon steel, meticulously coated with pure tin on both sides. This composite material synergizes the inherent strength and malleability of steel with the superior corrosion resistance, weldability, and visual appeal of tin. Such tinplate finds extensive applications across various industries, particularly in the food sector for cans and packaging. It also serves in non-food applications such as aerosol cans, bottle caps, gas-containing beverage containers, as well as in the manufacturing of home appliances, toys, stationery, and engineering materials.

2. Features of ETP Products

• Excellent Corrosion Resistance

By selecting a proper coating weight, appropriate corrosion resistance is obtained against container contents.

• Excellent Paintability & Printability

Printing is beautifully finished using various lacquers and inks.

• Excellent Solderability & Weldability

TIN PLATE is widely used for making various types of cans by soldering or welding.

• Excellent Formability & Strength

By selecting a proper temper grade, appropriate formability is obtained for various applications as well as the required strength after forming.

• Beautiful Appearance

Electrolytic ETP is characterized by its beautiful metallic luster. Products with various kinds of surface roughness are produced by selecting the surface finish of the substrate steel sheet.

3. Mechanical Properties of DR Tin Mill Products

4. Product Standard

• ETP

ETP orders are placed with Baosteel in accordance with Q/BQB 450-2009 standard which uses in a non-equivalent to JIS G 3303:2008, DIN EN 10202:2001, EN 10203 standards.

• TFS

TFS orders are placed with Baosteel in accordance with Q/BQB 455-2009 standard which uses in a non-equivalent to JIS G 3315:2008, DIN EN 10202:2001, EN 10203 standards.

5. Usage Precautions for ETP

• As ETP is covered by soft metallic tin coatings, due precautions should be taken not to cause scratches by rough handling or vibration during transportation.
• Paintability, printability, solderability, and mechanical properties of ETP tend to 收deteriorate as time elapses after production. Use as soon as possible after delivery.
• Although ETP has excellent corrosion resistance, it tends to rust in a humid atmosphere. Use as soon as possible after unpacking.
• Tin is dissolved by a strongly alkaline solution. When using ETP for making cans for alkaline contents, paint the internal surface.
• As contents that contain sulfur cause blackening of the ETP surface, paint the internal surface.

6. EQUIPMENT & PRODUCTION LINES

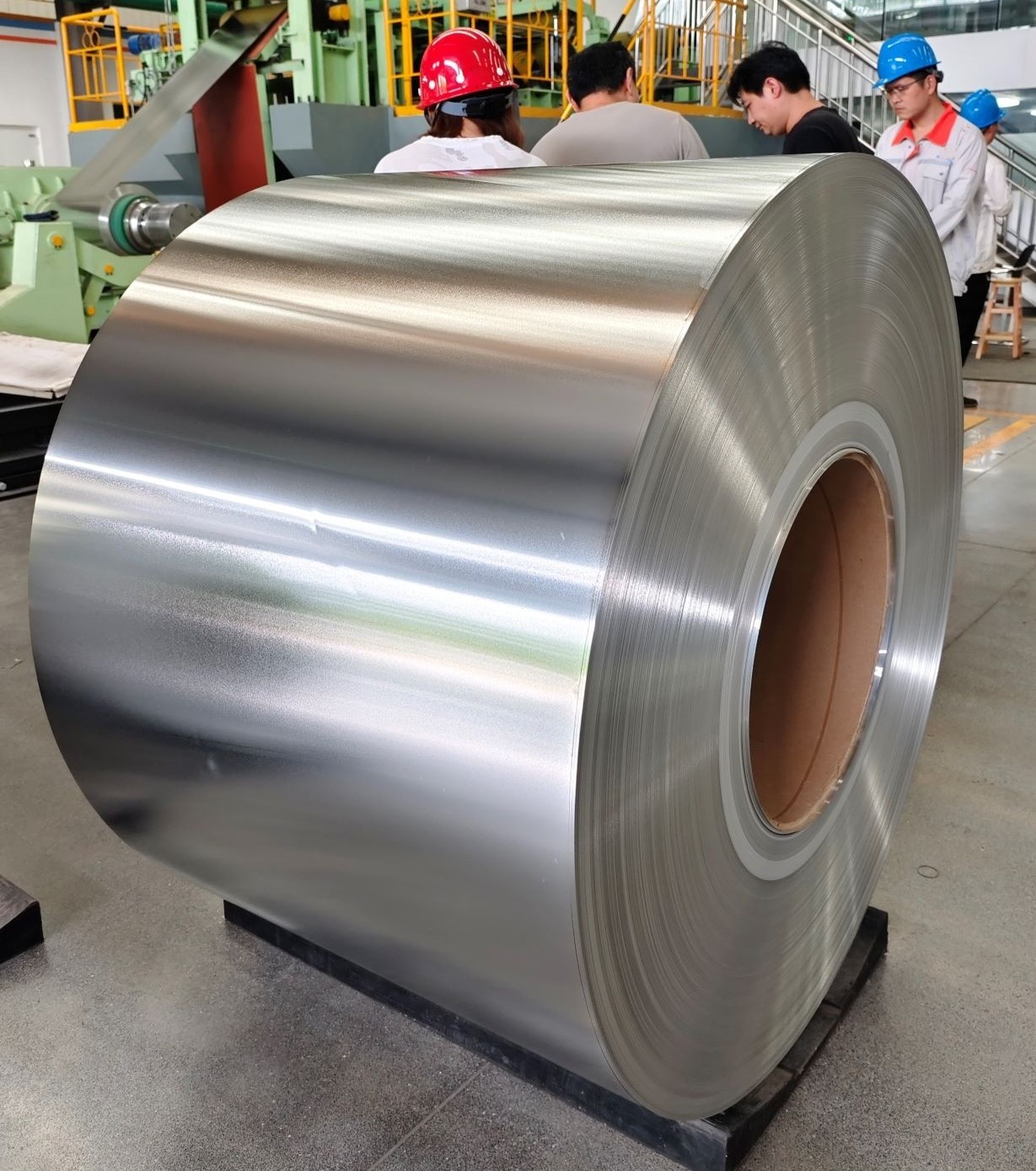

7. TINPLATE COILS

8. APPLICATIONS

Market status and prospect analysis of electroplated tin plate at home and abroad.

As the main consumption area of electroplated tin plate cans, whether as food (fish, meat, fruit, vegetables, etc.), beverages (alcoholic beverages, such as beer, etc., non-alcoholic beverages, such as carbonated beverages, fruit juices, coffee, etc.), Or as a packaging material for other items (drugs, oils, paints, cosmetics, sprays, etc.), with its advantages of keeping fresh for a long time, not easy to pollute, easy to circulate, low cost, easy to recycle, etc., it has been developing steadily for more than two hundred years, showing good prospects for development.

9. Packing and Marking

Shandong Decho Building Materials Technology Co., Ltd (hereafter called “DBM” ) is a professional manufacturer and exporting company of coated steel coils and sheets, with over 13 years of experience in steel industry and 11 years of steel mill work experience, with extensive product knowledge and experience in production process, especially for the supply of coated steel coils with a stable and reliable supply chain of manufacturers and logistics.

DBM is always in pursuit of and committed to providing high quality products and services. Our company has professional quality inspection team members, for each batch of orders can be fully on-site testing and provide test reports, can also accept any third-party testing company on-site testing, we can do is to ensure that each order goods delivered to a high standard, to achieve customer satisfaction, to achieve win-win cooperation.

DBM can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

DBM only focus on high standard coated coils with warranty service, We are your strict gatekeeper and faithful partner in China import , We always been committed to becoming your long-term reliable supplier in China.
