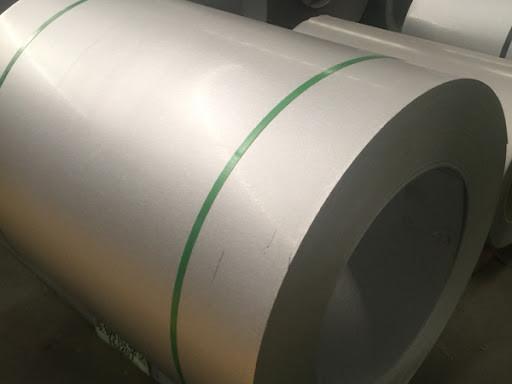

GL 0.43*1200MM AZM150 ASTM A792M CS-B AFP Galvalume Steel Corrugated Sheet Panels Roof Tiles GL 55% Aluzinc Steel Coil

The surface of the Galvalume / Aluzinc steel sheet presents a unique smooth, flat, and gorgeous spangle looking, with a silver white base color. The special coating structure gives it excellent corrosion resistance. The normal service life of Galvalume / Aluzinc Steel Sheet and Coils can reach 25 years, and they have good heat resistance and can be used in high-temperature environments at 315 ℃; The adhesion between the coating and the paint film is good, and it has good processing performance, which can be used for stamping, shearing, welding, etc; The surface conductivity is very good.

The coating consists of 55% aluminum, 43.5% zinc, and 1.5% silicon in weight ratio, respectively. The production process of aluminum zinc steel sheet is similar to that of galvanized steel plate and aluminum plated plate, and it is a continuous melting coating process. 55% aluminum zinc alloy coated aluminum zinc steel plate has superior corrosion resistance compared to galvanized steel plate of the same thickness when exposed to the same environment on both sides. 55% aluminum zinc alloy coated aluminum zinc steel ( 55% Alu-zinc Steel) plate not only has good corrosion resistance, but also color coated products have excellent adhesion and flexibility.

Aluminum-zinc-plated light steel exhibits several outstanding characteristics:

• Strong Corrosion Resistance: It provides corrosion resistance three times stronger than pure galvanizing. The surface features attractive zinc flowers and is suitable for use as exterior panels on building roofs.
• Long-term Color Stability: Designated as AZ150, aluminum-zinc-plated steel plates maintain their color over extended periods, resisting chemical corrosion. When exposed, a physical reaction occurs, forming a protective aluminum oxide film on the surface. This film isolates the steel from external chemicals, preventing rust and preserving the integrity of the material.
• Mechanism of Corrosion Resistance: Aluminum primarily contributes to its robust corrosion resistance. In the event of zinc abrasion, aluminum reacts to form a dense layer of aluminum oxide, effectively preventing further corrosion of the underlying steel.

These properties make aluminum-zinc-plated light steel a durable and protective choice for various applications, particularly where corrosion resistance and aesthetic appeal are crucial.

1) Standard: ASTM A792M, AS1397, EN10346/ EN10143 all according to the customer's request
2) Grade: SGCC, CS-Type B, Grade 350, G550, Grade 50, Grade 80, SS550GD, all according to the customer's request

3) Capacity: about 20000 tons per month

4) Thickness: from 0.13mm to 2mm, all available
5) Width: from 600mm to 1250mm, regular size:750-762mm,900-914mm,1000mm,1200mm,1219-1250mm all available
6) Coil ID: 508mm
7) Coil weight: from 2-10MT, according to the customer's request

8) Zinc coating weight: AZ30~AZ165g/m2

9) Spangle: regular spangle,big spangle, small spangle
10) Surface treatment: Anti-finger print (Green, Blue, Golden, No color) Chemical passivating, oils, passivating oils,skin passed
11) Edge: mill edge, cut edge
12) Min trial order 25 ton each thickness

Application:

Export Package

Shandong Decho Building Materials Technology Co., Ltd (hereafter called “DBM” ) is a professional manufacturer and exporting company of coated steel coils and sheets, with over 13 years of experience in steel industry and 11 years of steel mill work experience, with extensive product knowledge and experience in production process, especially for the supply of coated steel coils with a stable and reliable supply chain of manufacturers and logistics.

DBM is always in pursuit of and committed to providing high quality products and services. Our company has professional quality inspection team members, for each batch of orders can be fully on-site testing and provide test reports, can also accept any third-party testing company on-site testing, we can do is to ensure that each order goods delivered to a high standard, to achieve customer satisfaction, to achieve win-win cooperation.

DBM can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

DBM only focus on high standard coated coils with warranty service, We are your strict gatekeeper and faithful partner in China import , We always been committed to becoming your long-term reliable supplier in China.
