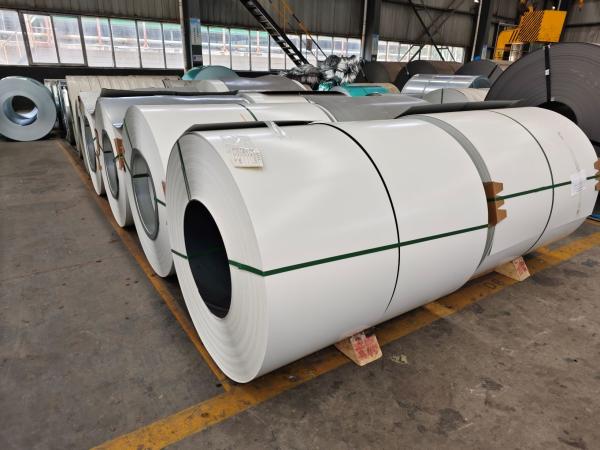

RAL9002 White Steel Coil Used For Rolling Door Painted Galvanized Z100 Coils Strips

1. Introduction

Colour coated coil is a versatile product made from substrates like hot-dip galvanized sheet, hot-dip aluminium zinc plated sheet, and electro-galvanized sheet. The manufacturing process involves pre-treatment, including chemical degreasing and chemical conversion treatment, followed by coating one or several layers of organic paint. This paint is then baked and cured to achieve a durable and aesthetically pleasing finish. These coils are named colour coated coils due to the various colours of organic paint applied.

Using hot-dip galvanized steel strip as the substrate for colour coated steel strip provides a dual layer of protection. Besides the zinc layer, the organic coating adds an extra shield, enhancing rust prevention and extending the steel strip's service life by about 1.5 times compared to regular galvanized strips.

2. Colour Coated Coil Usage

Colour coated coils offer a range of benefits including light weight, aesthetic appeal, and excellent anti-corrosion properties. They can be directly processed and are available in a variety of colours such as grey, white, sea blue, and brick red. These attributes make them suitable for a wide range of applications, including:

- Advertising: Used for billboards, signage, and display panels.
- Construction: Ideal for roofing, wall cladding, and structural panels in residential and commercial buildings.
- Home Appliance Industry: Used for the exterior panels of refrigerators, washing machines, and other appliances.
- Electrical Appliances Industry: Employed in the manufacturing of components for various electrical devices.
- Furniture Industry: Applied in the creation of metal furniture, offering a variety of colours and finishes.
- Transport Industry: Utilized in the automotive sector for vehicle bodies and parts.

3. Paint type

The coatings for colour coated coils are selected based on the specific environmental conditions in which they will be used.

Different resins are employed to ensure optimal performance:

- Polyester: Offers good adhesion, rich colours, formability, and outdoor durability at a low cost.
- Silicone Modified Polyester (SMP): Provides good film hardness, abrasion resistance, heat resistance, exterior durability, and resistance to chalking. It also retains gloss well and has general flexibility at a medium cost.
- High Durability Polyester (HDP): Known for excellent colour retention, UV resistance, exterior durability, and chalking resistance. It also has good film adhesion, rich colours, and provides excellent cost performance.
- Polyvinylidene Fluoride (PVDF): Known for exceptional colour retention, UV resistance, outdoor durability, chalking resistance, solvent resistance, and dirt resistance. It offers good formability but is available in limited colours and comes at a higher cost.

These characteristics and diverse applications make colour coated coils a popular choice across multiple industries, combining functionality with aesthetic appeal.

4. Coating Structures:

Type of coating structure

2/1: Coat upper surface twice, lower surface once, bake twice.

2/1M: Coat upper and lower surfaces twice, bake once.

2/2: Top and bottom surfaces are coated twice each and baked twice.

5. Usage of different coating structures:

2/1: The corrosion resistance and scratch resistance of single layer back coating is poor, but it has good adhesion, mainly used for sandwich panels.

It is mainly used for sandwich panels;

2/1M: backcoat with good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer compression moulding panels.

2/1M: good corrosion resistance, scratch resistance and moulding properties, good adhesion, suitable for single-layer pressboards and sandwich panels.

2/2: double-layer backing paint with good corrosion resistance, scratch resistance and processability, mostly used for single-layer pressboards, but with good adhesion.

Most of them are used for single-layer moulding board, but its adhesion is not good, and it is not suitable for sandwich board.

6. Detailed Parameters:

7. Test Process & Results:

8. Paint Suppliers & Partners:

In the coil coating industry, some of the commonly used global paint and coating brands include:

1. PPG Industries: Known for its wide range of industrial coatings, including those used in the coil coating industry.

2. AkzoNobel: Offers high-quality coatings for various applications, including coil coatings under brands like Interpon and Sikkens.

3. Sherwin-Williams: Provides a variety of industrial coatings suitable for coil coating applications.

4. Beckers Group: Specializes in high-performance coil coatings with a focus on sustainability and innovation.

5. Valspar (acquired by Sherwin-Williams): Known for its durable and versatile coatings for the coil coating industry.

6. BASF: Offers a wide range of industrial coatings with a strong presence in the coil coating sector.

7. Nippon Paint: Provides advanced coil coatings that are widely used in various industrial applications.

8. Kansai Paint: Known for its high-quality industrial coatings, including those for the coil coating industry.

9. Jotun: Offers a range of coatings for industrial use, including coil coatings with a strong emphasis on durability and performance.

10. Axalta Coating Systems: Provides innovative and durable coatings for the coil coating industry, focusing on performance and aesthetics.

These brands are recognized globally for their quality and reliability in the coil coating industry.

9. Package & Delivery Shipment :

Delivery time: 30 days deliver to loading port

Shipment Methods: Container, Breakbulk, Railway, Trucks

10. Projects:

Shandong Decho Building Materials Technology Co., Ltd (hereafter called “DBM” ) is a professional manufacturer and exporting company of coated steel coils and sheets, with over 13 years of experience in steel industry and 11 years of steel mill work experience, with extensive product knowledge and experience in production process, especially for the supply of coated steel coils with a stable and reliable supply chain of manufacturers and logistics.

DBM is always in pursuit of and committed to providing high quality products and services. Our company has professional quality inspection team members, for each batch of orders can be fully on-site testing and provide test reports, can also accept any third-party testing company on-site testing, we can do is to ensure that each order goods delivered to a high standard, to achieve customer satisfaction, to achieve win-win cooperation.

DBM can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

DBM only focus on high standard coated coils with warranty service, We are your strict gatekeeper and faithful partner in China import , We always been committed to becoming your long-term reliable supplier in China.
