    GB/T 2520─2008 Prime Electrolytic Tinplate Sheet Corrosion Resistance

    Ask Lasest Price
    Brand Name : Decho
    Model Number : Electrolytic Tinplate Coil T3
    Certification : Mill Test Certificate
    Price : USD 900
    Payment Terms : L/C, T/T
    Supply Ability : 700 TONS/ day
    Delivery Time : 30-45 Days
    • Product Details
    • Company Profile

    GB/T 2520─2008 Prime Electrolytic Tinplate Sheet Corrosion Resistance

    JIS G3303:2008 T-3 Cold-reduced electrolytic tinplate for Packaging containers and kitchen utensils SPCC, MR

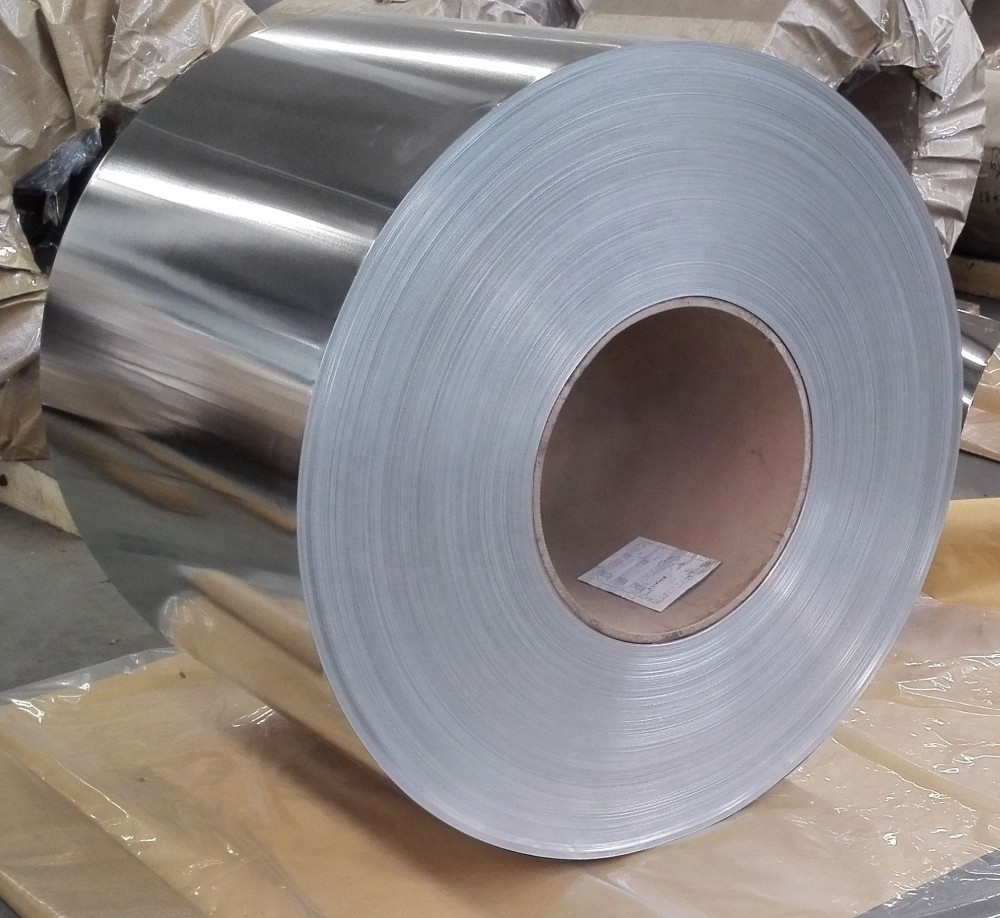

    Tin-plated, commonly known as tinplate, refers to cold rolled mild steel sheet or strip coated with a thin layer of metallic tin on both sides obtained through continuous tin-plating operations, which is corrosion-resistant, high-strength, well-moulded, easy to weld, non-toxic, and aesthetically pleasing. It is called tin-plated steel strip in roll form and tin-plated steel plate when cut into sheets.
    Standard
    GB/T 2520─2008, JIS G3303:2008
    Advantages
    • Superior Corrosion Resistance
    Corrosion resistance requirements of various contents can be met by selecting the appropriate plating thickness.
    • Outstanding Finishability
    Able to be primed with various types of paints and inks.
    • Good weldability
    Welding (including brazing) can be used to produce a wide variety of cans.
    • Great Workability and Strength
    Selection of an appropriate tempering grade satisfies the post-forming workability and strength requirements.
    • Bright appearance
    Tinplate surfaces are bright and shiny, and different surface roughnesses can be obtained by selecting substrates with different surface conditions.

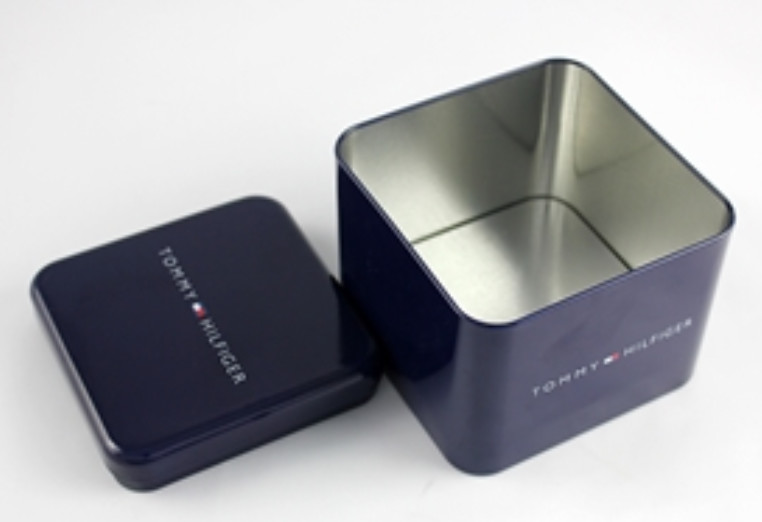

    Tinplate is most commonly used to make a variety of containers, such as food and beverage cans. However, its applications are not limited to container making; more recently, tinplate has also been used to make motor parts and many other products.


    StandardJIS / EN / ASTM Standard
    GradesElectrolytic Tinplate and Tin Free Steel according to JIS G3303, T1-T5, OR DR.

    Detailed Specification

    Annual Output

    768600 TONS

    STEEL DIMENSION

    THICKNESS

    0.18-0.55MM

    WIDTH

    730-1230MM

    Inlet strip steel thickness

    MAX

    3.0MM

    MIN

    2.0MM

    Strip Width

    MAX

    1230MM

    MIN

    730MM

    Pickling inlet speed

    MAX

    350M/MIN

    Outlet Finished thickness

    Tinplate

    Max 0.55mm

    Min 0.18mm

    CRC

    Max 0.80mm

    Min 0.30mm



    GB/T 2520─2008 Prime Electrolytic Tinplate Sheet Corrosion ResistanceGB/T 2520─2008 Prime Electrolytic Tinplate Sheet Corrosion ResistanceGB/T 2520─2008 Prime Electrolytic Tinplate Sheet Corrosion Resistance
