Brand Name : | Decho Building Materials |

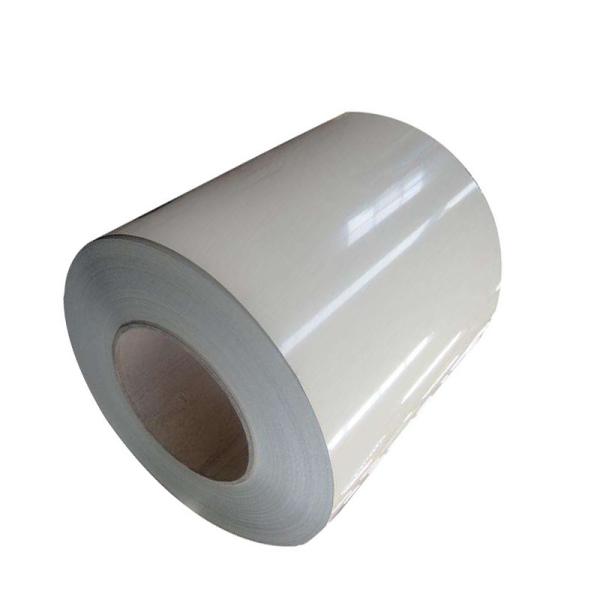

Model Number : | S320GD PRE-PAINTED GAVANIZED STEEL |
Certification : | MILL TEST CERTIFICATE、ISO9001-2008、SGS、BV |
Price : | USD 700~1050 |
Payment Terms : | L/C, T/T |
Supply Ability : | 500 tons per day |
Delivery Time : | 30~45days |
Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own
company.
I believe we will bethemost suitable supplier for you.
Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production
lines and know more about our strength and quality.
Q: Do you have quality control system?
A: Yes, we have ISO, BV, MTC, certifications and our own quality
control laboratory.Third party testing services are also available.
Q: Why should I choose you?
A: Choose happens because of quality,then price, we can give you
both. Additionally, we can also offer professional products
inquiry, products knowledge train( for agents), smooth goods
delivery, excellent customer solution proposals.
Our service formula:good quality + good price + good service =
Customer's trust
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 30
days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q: What is your terms of payment ?
A: We accept LC and TT both.
Thickness | GI 0.20mm~1.70mm GL 0.20mm~3.0mm |
Width | 600mm~1500mm |
Zink-Coating | Z40~Z275g/㎡ AZ30~AZ200g/㎡ |
Paint Structure | 2/1, 2/2, 3/2, 3/3 |
Paint Coating | Top side 15μm~55μm Back side 5μm~30μm |
Structural Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30,33,36,40 | 0.25 | 0.9 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
36T2,45-80 | 0.25 | 1.35 | 0.035 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
45T2 | .02- 0.08 | .30- 1.0 | .03- .07 | 0.025 | .02- .08 | 0.6 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | .01- .03 |
HSLA Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
45C1 | 0.22 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
45C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
50C1 | 0.23 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
50C2 & 55C2 | 0.15 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
55C1 | 0.25 | 1.35 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
60C1 & 65C1 | 0.26 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
60C2 & 65C2 | 0.15 | 1.5 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.06 | 0.005 | 0.005 | 0.005 | |||
70C1 | 0.26 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 | |||
70C2 | 0.15 | 1.65 | 0.04 | 0.04 | 0.2 | 0.2 | 0.15 | 0.16 | 0.005 | 0.005 | 0.005 |
Common Grades | C | Mn | P | S | Al | Si | Cu | Ni | Cr | Mo | V | Cb | Ti | N |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSA | 0.1 | 0.6 | 0.03 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
CSB | 0.02-.15 | 0.6 | 0.03 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
CSC | 0.08 | 0.6 | 0.1 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
BH | 0.012 | 1.5 | 0.12 | 0.03 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
FSA | 0.1 | 0.5 | 0.02 | 0.035 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
FSB | 0.02-.15 | 0.5 | 0.02 | 0.03 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | |||
DDS | 0.06 | 0.5 | 0.02 | 0.025 | .01 | 0.2 | 0.2 | 0.15 | 0.06 | 0.008 | 0.008 | 0.025 | ||
EDDS | 0.02 | 0.4 | 0.02 | 0.02 | .01* | 0.2 | 0.2 | 0.15 | 0.06 | 0.1 | 0.1 | 0.15 |
![]() |
