AZ40 0.40*910 regular spangle Galvalume Steel 55% Aluzinc Steel Coil Sheets
Non-Chromated Z30-150g/m2
Galvalume Coil composition by weight ratio of 55% aluminum,43.4%
zinc,1.6% silicon, at high temperature 600 high temperature
solidification and aluminized zinc plate surface is a unique smooth
flat gorgeous star flower, the base color is silver white special
coating structure makes it has excellent corrosion resistance
Galvalume Coil/ Sheet is mainly used in the construction of
household appliances, automobile containers, especially steel
structure building, automobile parts, steel plate warehouse
manufacturing and other industries. Their characteristics are
mainly: strong corrosion resistance, good surface quality, economic
and practical.
For galvalume steel, we have more than 10 production lines,
thickness from 0.11-2mm.
Galvalume steel coil is aluminum zinc alloy structurem it is made
by 55% aluminum, 43.4% zinc and 1.6% silicon,at 600ºChigh
temperature solidification and composition,its whole structure by
aluminum-iron-silicon-zin, which our galvalume steel has excellent
corrosion resistance. We can also offer the service of cutting and
punching. We are very capable to custom make for you.

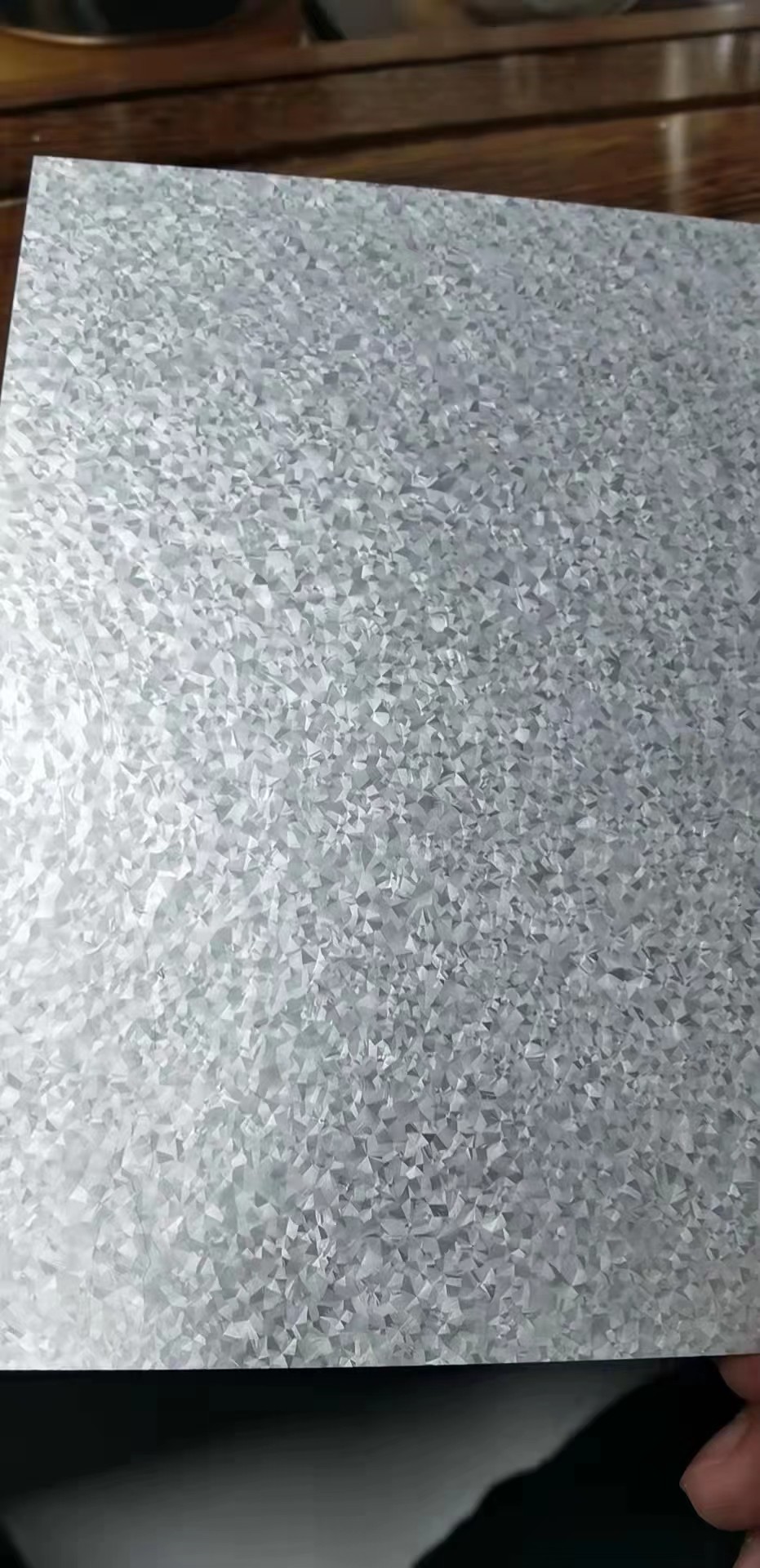

The surface of the Galvalume / Aluzinc steel sheet presents a unique smooth, flat, and gorgeous spangle looking, with a silver white base color. The special coating structure gives it excellent corrosion resistance. The normal service life of Galvalume / Aluzinc Steel Sheet and Coils can reach 25 years, and they have good heat resistance and can be used in high-temperature environments at 315 ℃; The adhesion between the coating and the paint film is good, and it has good processing performance, which can be used for stamping, shearing, welding, etc; The surface conductivity is very good.
Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.12-6.00mm,or customer's requirement |
Width | 600mm-1500mm, according to customer's requirement |
Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
Zinc Coating | 30-275g/m2 |
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
Quality | Approved by SGS,ISO |
ID | 508mm/610mm |
Coil Weight | 3-20 metric ton per coil |
Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
![]() |
