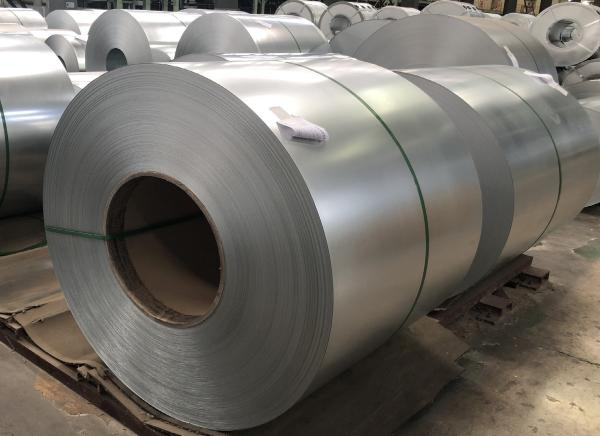

Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)

Shandong Decho Building Materials Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers

    Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers
    • Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers
    • Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers
    • Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers
    • Buy cheap Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm) from wholesalers

    Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)

    Ask Lasest Price
    Brand Name : DECHO
    Model Number : GALVALUME
    Certification : MILL TEST CERTIFICATE
    Price : 670~750 USD/MT
    Payment Terms : L/C, T/T
    Supply Ability : 1000 MT/DAY
    Delivery Time : 30-40 DAYS
    • Product Details
    • Company Profile

    Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)

    Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)

    The substrate composition of aluminium-zinc silicon steel plate is composed of 55%aluminum,43.5%zinc
    and 1.5%siicon which combines the physical protection and high durablity of aluminum with theelectrochemical protection properties of zinc.Under the same conditions,its corrosion resistance is 4-6 timesof galvanized sheet.It's an ideal material used for the roof and outer walls.

    Performance and major applications:
    Excellent weather resistance allows for over 20 years of service without maintenance.Early test results of theroof and wall system indicate that it has survived in decades of intense sun exposure,exposure to the sun,erosion from industrial waste,and temperature and pressure without requiring any malntenance.There are morethan 500 million square meters of construction in the world.Aluminium-zinc plate is the choice of architects andhomeowners of all ages,and its excellent resistance to erosion is the reason why this type of roof and wall surfaces widely used.Studies have shown that such roofing systems can be expected to last 30 years or more in mostcases and do not require their own maintenance and repair.

    1. Superior corrosion resistance: The corrosion resistance of zinc-aluminum-plated steel sheet is 6-8 times higher than that of general galvanized sheet, which is usually guaranteed not to rust for 20 years.

    2. High-temperature oxidation resistance: Aluminum-zinc-plated steel sheet will not undergo any discoloration or deformation even if it is used in a high-temperature environment of 315 degrees Celsius.

    3. High heat reflectivity: The heat reflectivity of zinc-aluminum-plated steel sheet is higher than 75%, which is about twice as much as that of galvanized sheet, and it can achieve energy-saving effect by acting as a roofing and paneling in unpainted situation.

    Uses: building roofs, walls, electrical cabinets, home appliances, automobiles, colour coated substrates, etc.

    1. excellent corrosion resistance: the corrosion resistance of aluminum-zinc galvanized steel sheet is 6 to 8 times higher than that of ordinary galvanized steel sheet, and it is usually guaranteed not to rust for 20 years.
    2. High temperature resistance: aluminum galvanized steel sheet will not discolor and deform even at temperatures up to 315°C.
    3. high heat reflectance: the heat reflectance of galvanized steel aluminum sheet is 75% or more, which is about twice that of galvanized steel sheet, and when it is uncoated, it can be used as roofing or tiling material and provides energy-saving advantages.
    4. Easy processing: it can meet the processing requirements of pressing, shearing and bending.

    European Standards EN 10346:2015

    StandardsSteel gradeThickness(mm)Width(mm)Coating Mass
    (g/square meter)
    EN 10346DX51D,
    DX52D,
    DX53D,
    DX54D,
    S220GD,
    S250GD,
    S280GD,
    S320GD,
    S350GD
    S550GD
    0.2 - 1.2800 - 1,250AZ100
    AZ150
    AZ185

    America standards ASTM A792M

    StandardsSteel gradeThickness(mm)Width(mm)Coating(g/square meter)
    ASTM A792MCS(TYPE A, B, C)
    FS(TYPE A, B)
    DS
    DDS
    SS GRADE
    33(230)
    37(255)
    40(275)
    50(340) CLASS 1~3
    80(550) CLASS 1~3
    0.2 - 1.2800 - 1,250AZM100
    AZM110
    AZM120
    AZM150
    AZM165
    AZM180

    Japanese Standard JIS G 3321

    StandardsSteel gradeThickness(mm)Width(mm)Coating(g/square meter)
    JIS G 3321SGLCC
    SGLCD
    SGLCDD
    SGLC400
    SGLC440
    SGLC490
    SGLC570
    0.2 - 1.2800 - 1,250Z06(60)
    Z08(80)
    Z10(100)
    Z12(120)
    Z14(140)
    Z18(180)
    Z20(200)
    Z22(220)
    Z25(250)
    Z27(270)

    Australian Standard AS1397

    StandardsSteel gradeThickness(mm)Width(mm)Coating
    AS1397G1~G3
    G250
    G300
    G350
    G450
    G500
    G550
    0.2 - 1.2800 - 1,250AZ150
    AZ200

    Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)Az30 To Az150 Antifinger Aluzinc GL Galvalume Steel Coil Building Material (0.13-0.8mm)
