EN10143 Regular Spangle Galvanised Steel Coils Chromium free
passivation use for corrugated steel sheets
Hot-dip galvanised steel coil (GI) is made by passing a fully
hardened steel sheet, which has undergone a pickling and rolling
process, through a zinc pot, thereby coating the surface with a
zinc film. Due to the properties of zinc, it offers excellent
corrosion resistance, paintability and workability. Typically, the
process and specifications for hot-dip galvanised steel sheet and
galvanised steel coil are essentially the same.
Hardness: soft (normal), hard, full hard
Zinc coating: 30-275 G /M², or on request
Zinc pattern: large zinc pattern, small zinc pattern, no zinc
pattern
Surface finish: fingerprint resistant, chromate, oiled, unoiled
Steel
Grade:Dx51D,Dx52D,Dx53D,DX54D,S220GD,S250GD,S280GD,S350GD,S350GD,S550GD；
SGCC,SGHC,SGCH,SGH340,SGH400,SGH440,SGH490,SGH540,SGCD1,SGCD2,SGCD3,SGC340,SGC340,SGC490,SGC570;
SQ CR22(230),SQ CR22(255),SQ CR40(275),SQ CR50(340),SQ
CR80(550),CQ,FS,DDS,EDDS,SQ CR33(230),SQ CR37(255), SQCR40(275),SQ
CR50(340),SQ CR80(550);
Galvanised steel coils are thin steel sheets that are dipped into
molten zinc in order to attach a layer of zinc to the surface. This
is an effective method of corrosion protection that extends the
life of the metal material.
Classification of galvanised steel substrate
- Hot rolled galvanised steel sheet: hot rolled steel sheet with
pickled substrate.
- Cold rolled galvanised steel sheet: the substrate is cold rolled or
hardened steel sheet.

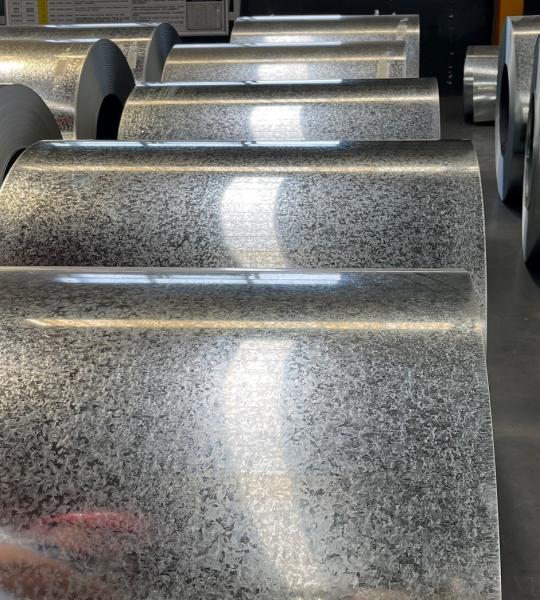

Classification of zinc spangle
- Large / Big zinc spangle (regular spangle): zinc spangle formed by free growth of zinc crystals in the normal
solidification process after hot dip plating of steel plates in
conditions where the zinc solution contains antimony or lead.
- Minimum zinc spangle : because of the control of the growth of zinc flower
crystallisation, so the surface grain structure is fine; because of
the surface uniformity, so the surface quality after painting is
excellent; paintability is better than conventional zinc flower.
- No zinc spangle (zero zinc spangle): because the growth of zinc particles is completely controlled
during the molten zinc fixing process, it is difficult to see zinc
spangles with the naked eye; because the surface is uniform, the
surface quality after painting is excellent.
- Skin passed zinc spangle: the molten zinc is cured and then smoothed to obtain an extremely
smooth surface; because the surface is smooth, the surface quality
after painting is excellent.
SURFACE TREATMENT | DESCRIPTION OF USE |
CHROMATE PASSIVATION(C) | Surface treatment for high-strength steel plates after hot-dip
plating to reduce white rust during transport and storage |
Chrome-free passivation(C5) | Surface treatments that require limiting the amount of hexavalent
chromium, etc. in passivation solutions that are harmful to the
environment and humans |
Anti-finger print(N) | Surface treatment after the passivation process, which acts as a
lubricant during processing, prevents fingerprints from staining
during operation, and prevents premature blackening of the surface
during use. |
Chrome-free and fingerprint resistant(N5) | Surface treatment after the passivation process, in the process of
lubrication, to prevent the operation of the fingerprint staining,
to prevent the use of the surface of the process of premature
blackening, and at the same time, the requirement to limit the
fingerprint-resistant film harmful to the environment and human
body, such as hexavalent chromium content |
Oiled(O) | Surface treatment added after the passivation process to further
reduce rusting during long-distance transport and long-term storage |
| Index | Regular spangle Galvanized Steel Coil/Sheets | Zero spangle Galvanized Steel Coil/Sheets |
| Thickness | 0.13-2.50mm | 0.20-2.0mm |
| Width | 600~1500mm | 600~1500mm |
| Zinc Coating | Z30~Z400 g/㎡ | Z30~Z275 g/㎡ |
| Surface Treatment | Passivated / Chromated 6+,3+, Free; Oiled | Skin passed, Chromated 6+, 3+, Free Oiled, AFP (anti-finger print) |
| Steel Grade | DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) | DX51D/52D/53D/ S250GD/280GD/350GD/550GD ASTM A653M, SS255-SS550 JIS G3302-SGCC, SGCH (Full hard-G550) |
| Coil I.D. | 508 / 610 mm | 508 / 610 mm |
| Coil weight | 2 ~ 20 tons | 2 ~ 20 tons |
| Packaging | Standard export packing ( Eye to Side) Vertical Packing ( Eye to Sky) with wooden pallet Horizontal Packing ( Eye to Side) with wooden pallet |
| MOQ. | 16 tons | 16 tons |
| Loading port | Tianjin / Qingdao / Rizhao port | |
| Usage | Purlins, light steel frame, ventilation duct, downpipe, round pipe,
square pipe, roof panel, corrugated sheets. | Coated steel coil production, household appliances ( pre-coated
metal PCM) Roof panel, corrugated sheets |
