    Textured RAL9004 Black Matt Mesh Colour Coated Steel Sheet 28 Gauge

    Ask Lasest Price
    Brand Name : DECHO
    Model Number : ASTM A653 GRADE50
    Certification : ISO9001, CE
    Price : 1000 USD/MT
    Payment Terms : L/C, T/T
    Supply Ability : 500MT/DAY
    Delivery Time : 30-40 DAYS
    • Product Details
    • Company Profile

    Textured RAL9004 Black Matt Mesh Colour Coated Steel Sheet 28 Gauge

    Textured Colour Coated Steel Sheet in Coil Z275 Pre-Painted Steel Metal Coil RAL9004 Super SMP paint Valspar 40 year

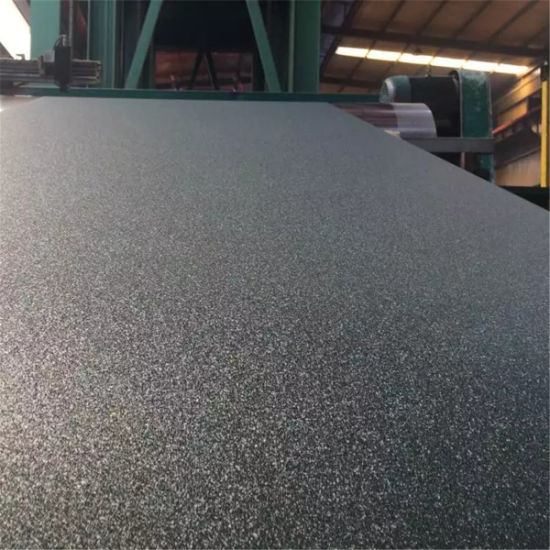

    Textured Matt Mesh Colour Coated Steel sheet

    Reticulated colour coated sheet, also called grid colour coated sheet, is a colour coated sheet coated on galvanised, aluminium-zinc plated, cold rolled and other substrates with a kind of high weather-resistant polyester coating that has a reticulated effect on the surface of the coating after drying. It is mainly used in the indoor and outdoor decoration of civil buildings, villas, high-end integrated houses, industrial buildings and so on.

    1. Product characteristics

    The coating presents "diffuse reflection characteristics" to the sunlight, and when applied to industrial plants, due to the diffuse reflection characteristics of the surface of the coating, it makes the overall building colour softer and avoids light pollution.

    Applied to villas, high-grade integrated house roofs and high-rise buildings, it can enhance the contrast with the surrounding environment and reduce the visual deviation of pilots who fly over the buildings.

    The surface has a good "matt/textured/mesh/wrinkle" visual effect.

    Because of the production of warm or dark coloured paints, it has a certain heat-absorbing effect and a psychological underlining effect when used in cold northern regions.

    2. Scope of application

    Because of its low light effect, close to nature and other characteristics, mesh colour coated board is widely used in high-rise buildings, villas, high-end integrated housing, industrial buildings and other indoor and outdoor decoration. Especially in civil buildings, villas and other roof colour steel antique tiles in the production of the most widely used.

    3. Detailed Specification

    Index

    Pre-Painted Galvanized/ Galvalume / Aluminum Sheets & Coils

    Thickness

    Base Metal : GI: 0.20-1.70mm; GL: 0.20-1.50mm

    Base Metal: Aluminum 0.30-3.0mm

    Width

    600~1500mm

    Zinc Coating

    Z40~Z275 g/㎡

    AZ30~AZ200 g/㎡

    Paint Structure

    2/1, 2/2, 3/2, 3/3

    Paint Coating

    Top side: 15μm~55μm

    Back side: 5μm~30μm

    Paint System

    RMP, PE, SMP, HDP, PVDF

    Paint Brand

    PPG

    Beckers

    AkzoNobel

    Valspar (Sherwin-Williams)

    Chinese local brands

    Paint surface

    Gloss RAL color system

    Textured/Matt/Wrinkle Surface

    Printch Pattern Colors-Wood, Brick, Stone grains.

    Coil weight

    2 ~ 10 tons

    Packing

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons/color/size

    4. Product characteristic

    The coated plate has the advantages of both organic polymers and steel plates, both organic polymers, good colouring, forming, corrosion resistance, decorative, but also the high strength of the steel plate and easy to process, it can be easily punched, bending, deep-drawn, welding and other processing. This makes the products made of organic coated steel plate have excellent practicality, decorative, processing, durability. Coated sheet of many varieties, about more than 600 kinds, but there is still no a unified classification method, because of the many varieties of difficult to find a distinction between the standard, at the same time, each manufacturer has its own unique equipment, technology, product variety. Now only according to the general customary classification.
