    AS1397 55% Alu Zinc Steel Slit Coils 0.43*188mm AZ150 Anti Finger Print Chromated Unoiled

    Ask Lasest Price
    Price : 850 USD/MT
    Payment Terms : L/C, T/T
    Supply Ability : 500MT/DAY
    Delivery Time : 30-40 DAYS
    • Product Details
    • Company Profile

    AS1397 55% Alu Zinc Steel Slit Coils 0.43*188mm AZ150 Anti Finger Print Chromated Unoiled

    AS1397 55% Alu-zinc Steel Slit Coils 0.43*188mm Galvalume Strip Steel Coil AZ150 Anti Finger Print Chromated Unoiled

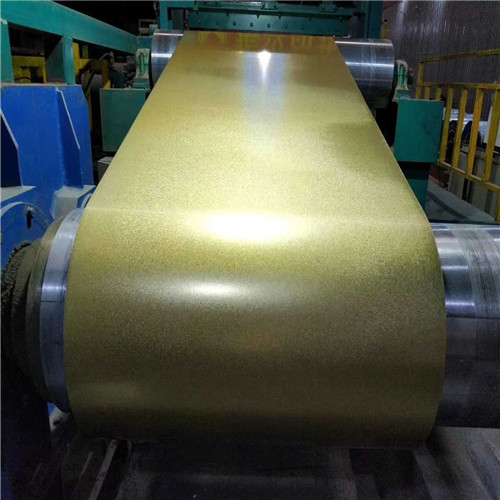

    Introduction of Galvalume / Aluzinc Steel Coil and Slitted Strip Coils

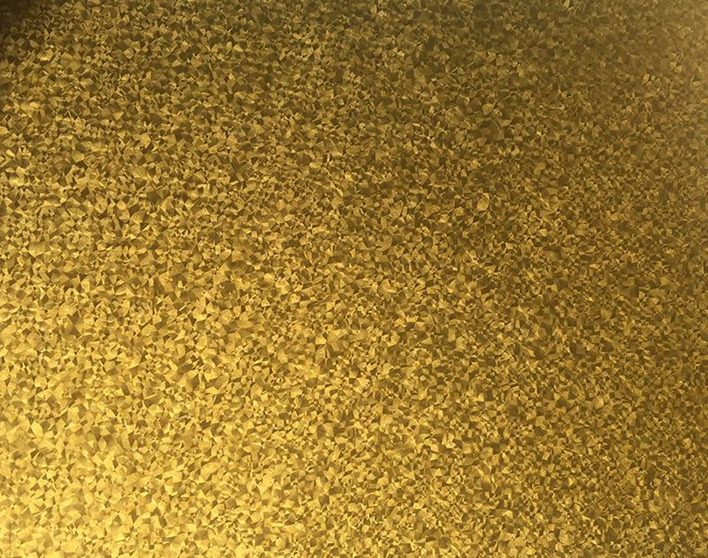

    The surface of the Galvalume / Aluzinc steel sheet presents a unique smooth, flat, and gorgeous spangle looking, with a silver white base color. The special coating structure gives it excellent corrosion resistance. The normal service life of Galvalume / Aluzinc Steel Sheet and Coils can reach 25 years, and they have good heat resistance and can be used in high-temperature environments at 315 ℃; The adhesion between the coating and the paint film is good, and it has good processing performance, which can be used for stamping, shearing, welding, etc; The surface conductivity is very good.

    The coating consists of 55% aluminum, 43.5% zinc, and 1.5% silicon in weight ratio, respectively. The production process of aluminum zinc steel sheet is similar to that of galvanized steel plate and aluminum plated plate, and it is a continuous melting coating process. 55% aluminum zinc alloy coated aluminum zinc steel plate has superior corrosion resistance compared to galvanized steel plate of the same thickness when exposed to the same environment on both sides. 55% aluminum zinc alloy coated aluminum zinc steel ( 55% Alu-zinc Steel) plate not only has good corrosion resistance, but also color coated products have excellent adhesion and flexibility.

    Application of Galvalume / Aluzinc Steel Coils

    • Buildings: roofs, walls, garages, soundproof walls, pipes, and modular houses, etc

    • Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc

    • Home appliances: refrigerator backplate, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof strip, LED backlight, electrical cabinet, etc

    • Agriculture: pig houses, chicken houses, granaries, greenhouse pipes, etc

    • Others: heat insulation cover, heat exchanger, dryer, water heater, etc.

    Index

    Regular spangle / Minimum Spangle

    Galvalume/ 55% Aluzinc Steel Coil/Sheets

    Thickness

    0.13-2.0mm

    Width

    600~1500mm

    Zinc Coating

    AZ30~AZ200 g/㎡

    Surface Treatment

    AFP (anti-finger print)

    Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed

    Steel Grade

    DX51D/52D/53D/

    S250GD/280GD/350GD/550GD

    ASTM A792M, CS-B, SS255-SS550

    JIS G3302-SGCC, SGCH (Full hard-G550)

    Coil I.D.

    508 / 610 mm

    Coil weight

    2 ~ 20 tons

    Packaging

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons

    Loading port

    Tianjin / Qingdao / Rizhao port

    Environment

    Zinc Weight/ G/sqm

    indoor environment

    AZ70 or AZ100

    Suburban environment

    AZ150 or AZ100 + painting

    Urban or industrial areas

    AZ150+ pre painted paint coating

    Coastal Areas

    AZ180+ thick paint coating

    SURFACE TREATMENT

    DESCRIPTION OF USE

    CHROMATE PASSIVATION(C)

    Surface treatment for high-strength steel plates after hot-dip plating to reduce white rust during transport and storage

    Chrome-free passivation(C5)

    Surface treatments that require limiting the amount of hexavalent chromium, etc. in passivation solutions that are harmful to the environment and humans

    Anti-finger print(N)

    Surface treatment after the passivation process, which acts as a lubricant during processing, prevents fingerprints from staining during operation, and prevents premature blackening of the surface during use.

    Chrome-free and fingerprint resistant(N5)

    Surface treatment after the passivation process, in the process of lubrication, to prevent the operation of the fingerprint staining, to prevent the use of the surface of the process of premature blackening, and at the same time, the requirement to limit the fingerprint-resistant film harmful to the environment and human body, such as hexavalent chromium content

    Oiled(O)

    Surface treatment added after the passivation process to further reduce rusting during long-distance transport and long-term storage

    Index

    Strips & Slitting Steel Coils

    Available Products

    Galvanized, Galvalume, Aluzinc, Pre-Painted Steel Coils

    Thickness

    0.13-2.0mm

    Width

    20~1250mm

    Steel Grade

    DX51D/52D/53D/

    S250GD/280GD/350GD/550GD

    ASTM A792M, CS-B, SS255-SS550

    JIS G3302-SGCC, SGCH (Full hard-G550)

    Coil I.D.

    508 / 610 mm

    Coil weight

    1.5tons ~ 10 tons

    Packaging

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons

    Loading port

    Tianjin / Qingdao / Rizhao port

    DECHO building colour steel plate can meet the need to use colour steel plate as raw material for building. Decho Building Materials colour steel plate is mainly processed into, for example, colour steel corrugated board or colour steel composite sandwich board after our colour steel plate is widely used in the construction of airports, freezers, steel plants, warehouses, and other industrial buildings and commercial buildings, such as the roof of the colour steel tiles, colour steel plate sandwich walls and doors.

    Reasons for choosing Decho Building Materials new material:

    1. Provide extremely rich colour choices

    2. The paint surface is long-lasting and bright

    3. Surface coating will not fall off after stamping and has good hardness with strong ductility and is not easy to scratch.

    4. with excellent weather resistance, corrosion resistance, is to ensure the durability of the premise of the building

    5. DECHO BUILDING MATERIALS for the manufacturer direct sales

    6. The colour is customized by customers;

    7. Thickness and width have a variety of options;

    8. We provide whole rolls and cut boards for sale;

    Welcome to enquire.
