    ASTM A792M AZ150 AFP Galvalume Steel Coil 55% AL ZN Steel Sheet

    Ask Lasest Price
    Price : 680-750USD/MT
    Supply Ability : 1000 MT/DAY
    Delivery Time : 30-40 DAYS
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    ASTM A792M AZ150 AFP Galvalume Steel Coil 55% AL ZN Steel Sheet

    ASTM A792M AZ150 AFP Galvalume Steel Coil,55% AL-ZN STEEL SHEET

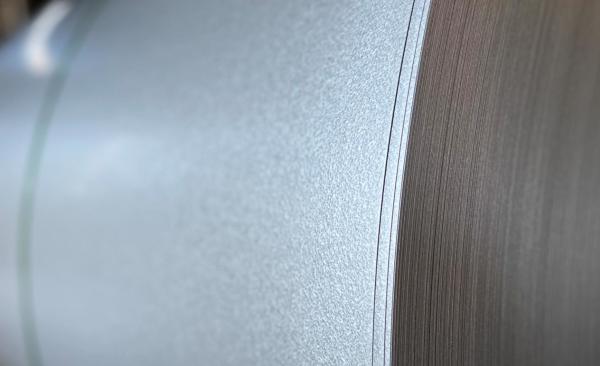

    The surface of the Galvalume / Aluzinc steel sheet presents a unique smooth, flat, and gorgeous spangle looking, with a silver white base color. The special coating structure gives it excellent corrosion resistance. The normal service life of Galvalume / Aluzinc Steel Sheet and Coils can reach 25 years, and they have good heat resistance and can be used in high-temperature environments at 315 ℃; The adhesion between the coating and the paint film is good, and it has good processing performance, which can be used for stamping, shearing, welding, etc; The surface conductivity is very good.

    The coating consists of 55% aluminum, 43.5% zinc, and 1.5% silicon in weight ratio, respectively. The production process of aluminum zinc steel sheet is similar to that of galvanized steel plate and aluminum plated plate, and it is a continuous melting coating process. 55% aluminum zinc alloy coated aluminum zinc steel plate has superior corrosion resistance compared to galvanized steel plate of the same thickness when exposed to the same environment on both sides. 55% aluminum zinc alloy coated aluminum zinc steel ( 55% Alu-zinc Steel) plate not only has good corrosion resistance, but also color coated products have excellent adhesion and flexibility.

    Application:

    Buildings: roofs, walls, garages, soundproof walls, pipes, and modular houses, etc

    Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc

    Home appliances: refrigerator backplate, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof strip, LED backlight, electrical cabinet, etc

    Agriculture: pig houses, chicken houses, granaries, greenhouse pipes, etc

    Others: heat insulation cover, heat exchanger, dryer, water heater, etc.

    Index

    Regular spangle / Minimum Spangle

    Galvalume/ 55% Aluzinc Steel Coil/Sheets

    Thickness

    0.13-2.0mm

    Width

    600~1500mm

    Zinc Coating

    AZ30~AZ200 g/㎡

    Surface Treatment

    AFP (anti-finger print)

    Passivated / Chromated 6+,3+, Free; Oiled; Skin-passed

    Steel Grade

    DX51D/52D/53D/

    S250GD/280GD/350GD/550GD

    ASTM A792M, CS-B, SS255-SS550

    JIS G3302-SGCC, SGCH (Full hard-G550)

    Coil I.D.

    508 / 610 mm

    Coil weight

    2 ~ 20 tons

    Packaging

    Standard export packing ( Eye to Side)

    Vertical Packing ( Eye to Sky) with wooden pallet

    Horizontal Packing ( Eye to Side) with wooden pallet

    MOQ.

    16 tons

    Loading port

    Tianjin / Qingdao / Rizhao port
